POWRIG D-Tap Splitter 1 to 4

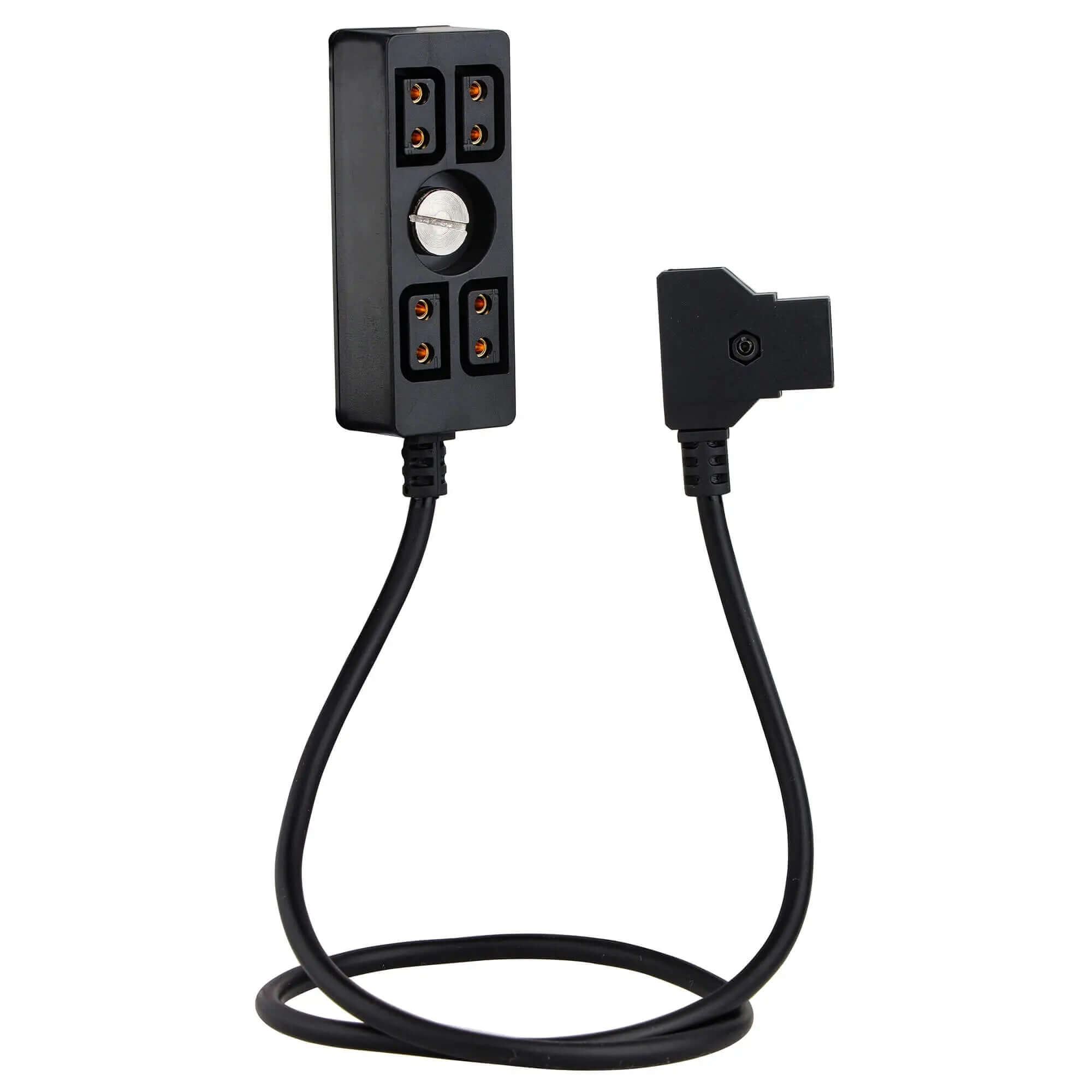

D-Tap power splitter cable with 1× D-Tap male input and 4× D-Tap female outputs. Splits a single V-Mount or Gold Mount battery into four independent power lines for monitors, wireless video transmitters, electric follow focus motors, and other on-camera accessories. Includes a 1/4"-20 mounting screw for secure cage attachment. Cable length: 50 cm (20").
Specifications
| Spec | Detail |
|---|---|
| Model | Dtap-4 |
| Input | 1× D-Tap male (V-Mount / Gold Mount battery) |
| Outputs | 4× D-Tap female (14.4V / 12V pass-through) |
| Cable Length | 50 cm / 20 in |

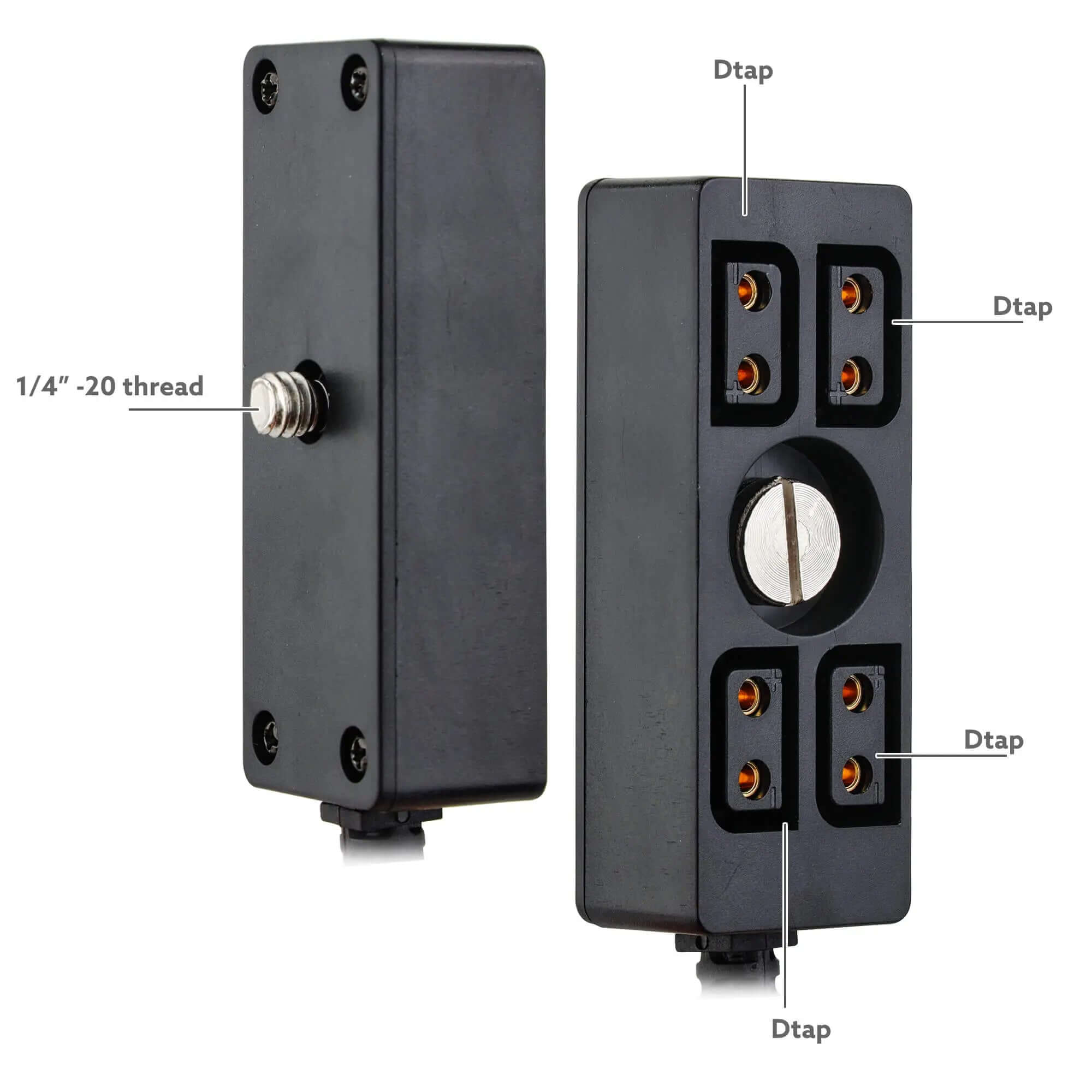

| Mounting | 1/4"-20 screw hole (attaches to camera cage) |
| Material | Plastic housing, copper conductors |
| Color | Black |
| In the Box | 1 × D-Tap splitter (battery & accessories not included) |
Key Advantages
- 4 simultaneous outputs — power monitor + wireless TX + 2 accessories from a single battery

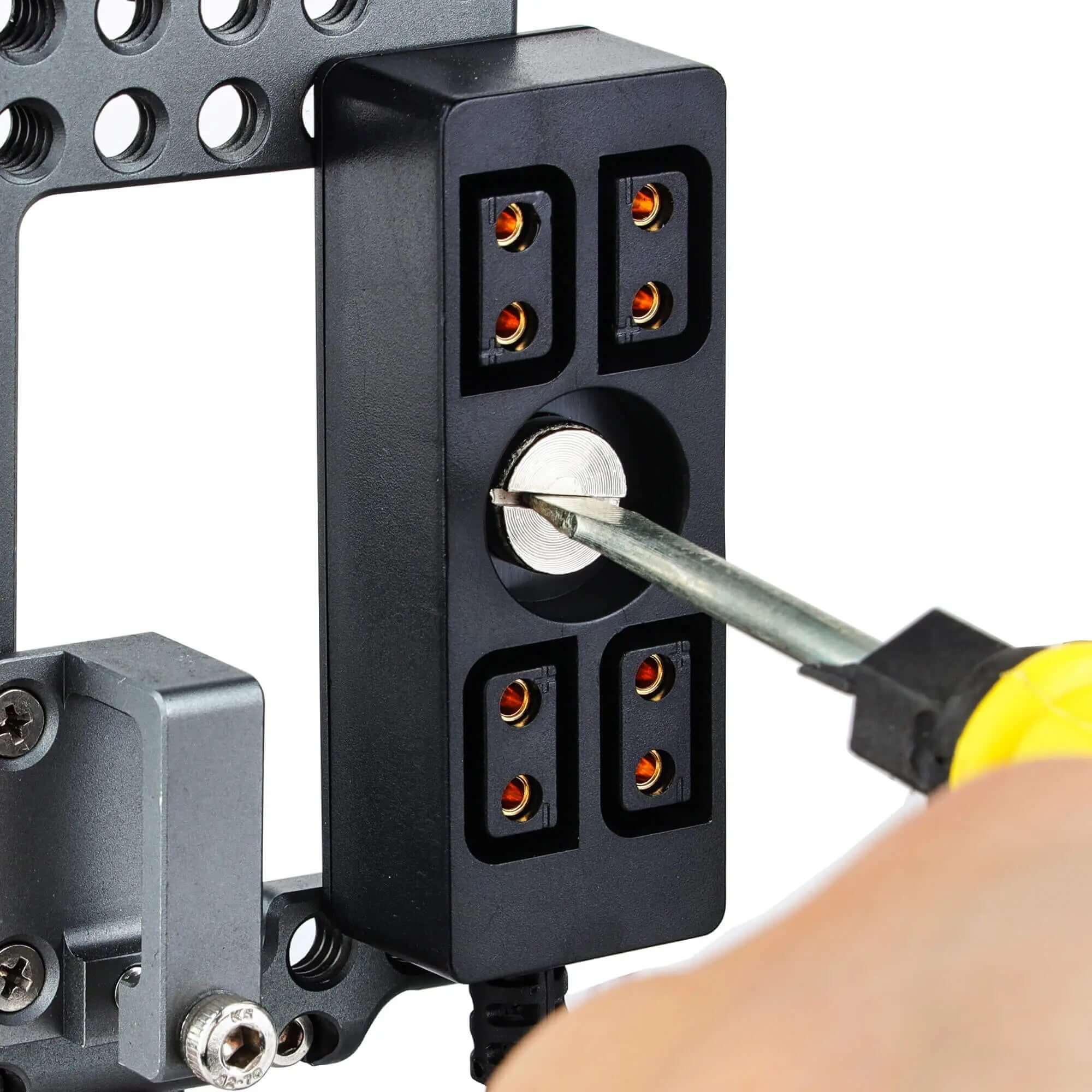

- 1/4"-20 mount — screws directly to camera cage, no loose cables or tape
- Pass-through voltage — outputs match battery voltage (14.4V from V-Mount, 12V from Gold Mount) with no regulation loss
- 50 cm reach — sufficient length for cage-mounted accessories without excess cable
What You Can Power
- Field monitors: SmallHD, Atomos, FeelWorld, Portkeys (any device with D-Tap input)
- Wireless video: Teradek Bolt, Hollyland Mars, Accsoon CineEye (via D-Tap power cable)
- Follow focus motors: Tilta Nucleus, Preston, Redrock microFollowFocus
- LED lights: On-camera D-Tap powered lights (Aputure MC, Lupo Superpanel)
Compatible Batteries
| Battery Type | Output Voltage | Compatible |
|---|---|---|
| V-Mount ( Anton Bauer, IDX, Swit, Core SWX ) | 14.4V nominal | ✅ Yes |
| Gold Mount ( Anton Bauer ) | 14.4V nominal | ✅ Yes |
| B-Mount ( 28.8V ) | 28.8V nominal | ❌ No — overvoltage risk |
| Sony NP-F (via adapter) | 7.2V nominal | ❌ No — different connector |
Do not use with B-Mount 28.8V batteries — the D-Tap output voltage will exceed the rating of most 12V/14.4V accessories.
