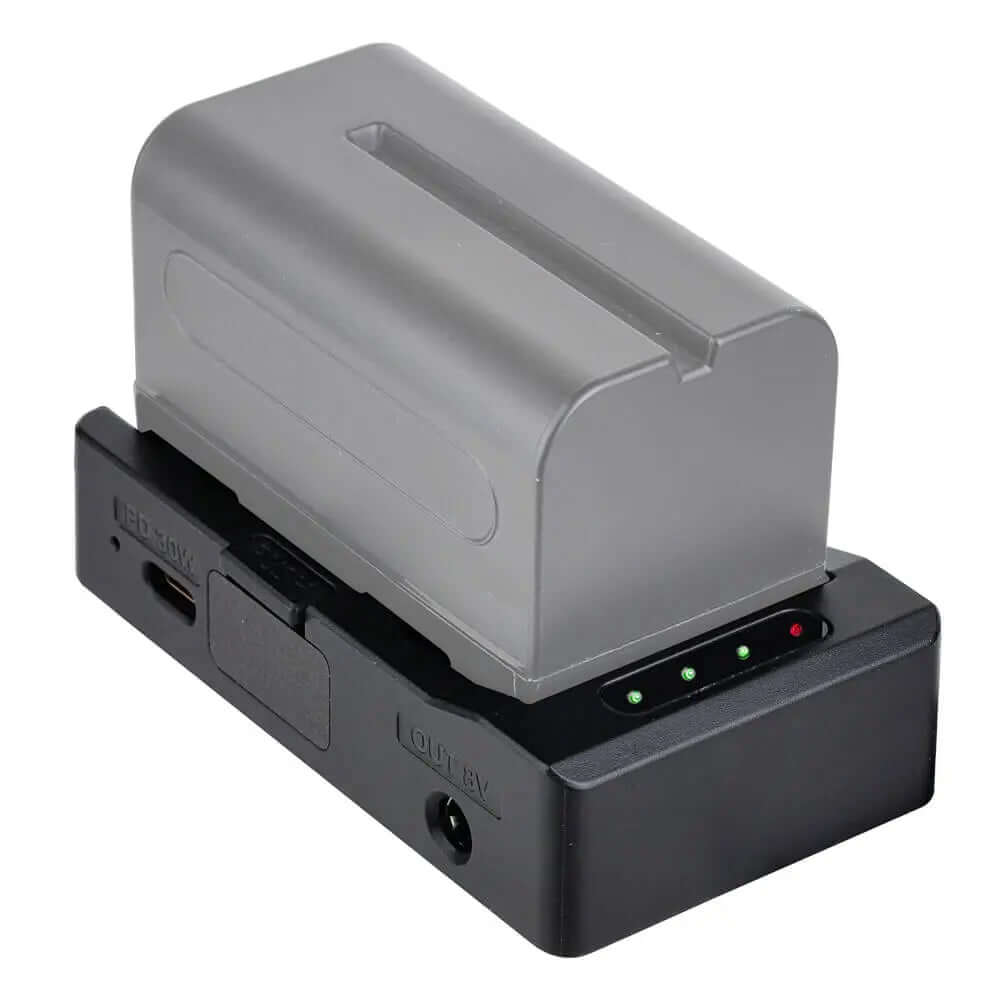

POWRIG NP-F Battery Adapter Plate
NP-F battery adapter plate with 3× DC5525 outputs (2× 8V + 1× 12V) for powering cameras, on-camera monitors, and LED lights from standard Sony NP-F batteries (NP-F550, NP-F750, NP-F970). Available in two versions: USB-C PD 3.0 at 30W (model NF-FC) or USB-A at 18W (model NF-FU). Includes a cold shoe adapter for cage or tripod mounting. Weighs 70 g.
Specifications
| Spec | Detail |
|---|---|
| Models | NF-FC (USB-C) / NF-FU (USB-A) |
| Battery Compatibility | Sony NP-F530, NP-F550, NP-F570, NP-F750, NP-F770, NP-F950, NP-F960, NP-F970, NP-F990 |
| DC Outputs | 2× DC5525 @ 8V + 1× DC5525 @ 12V |

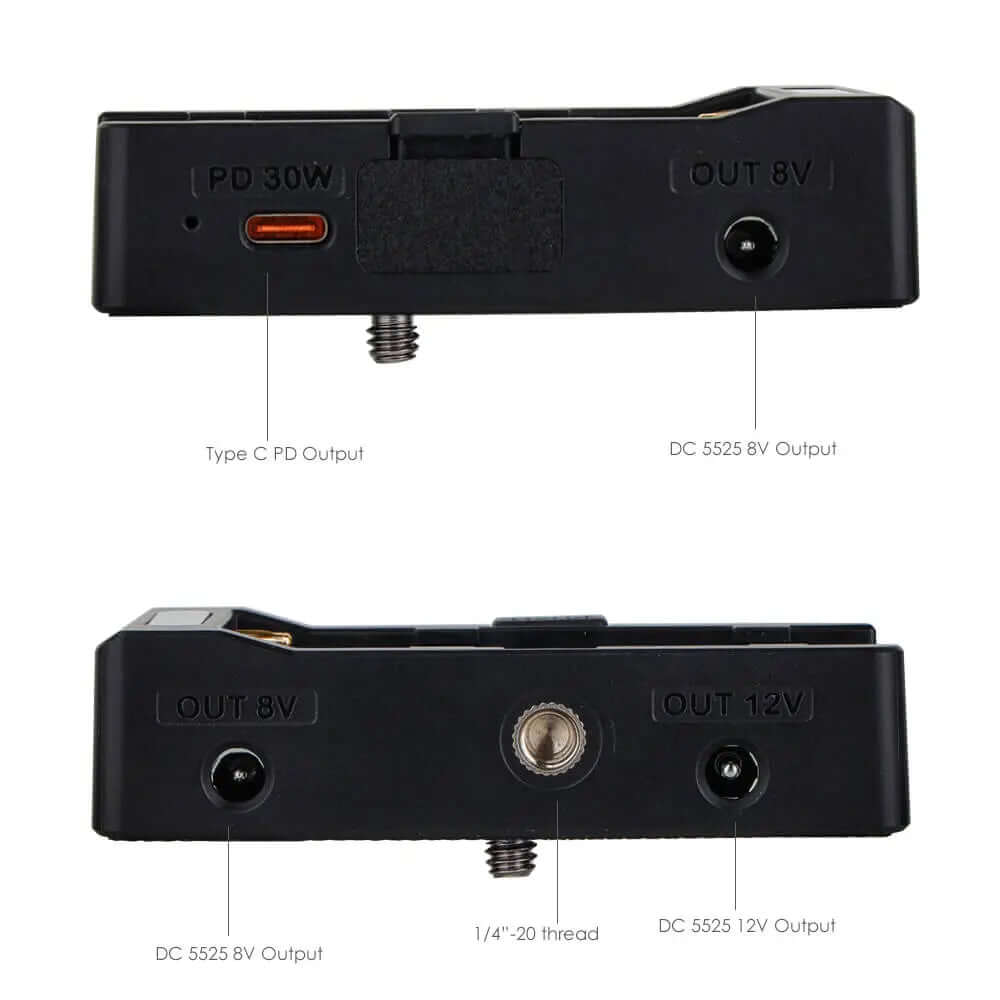

| USB-C Output (NF-FC) | PD 3.0, max 30W |

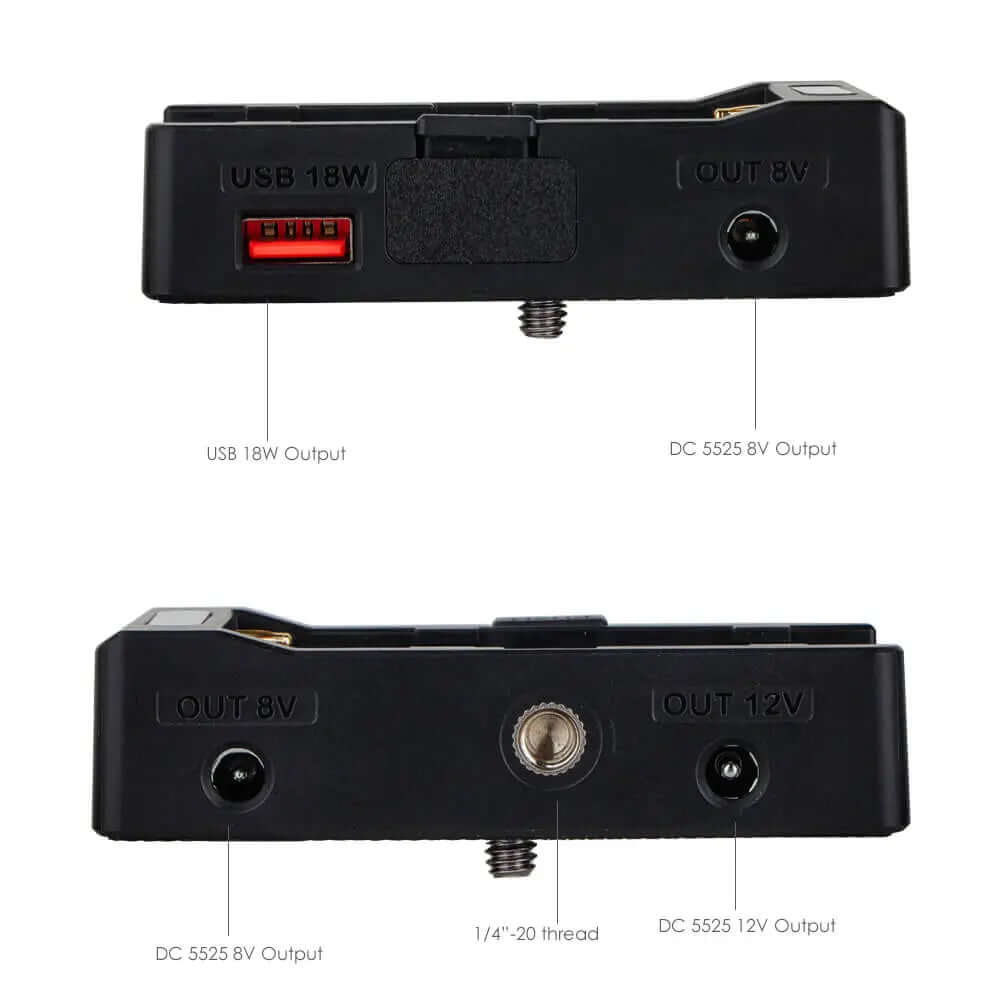

| USB-A Output (NF-FU) | Max 18W |

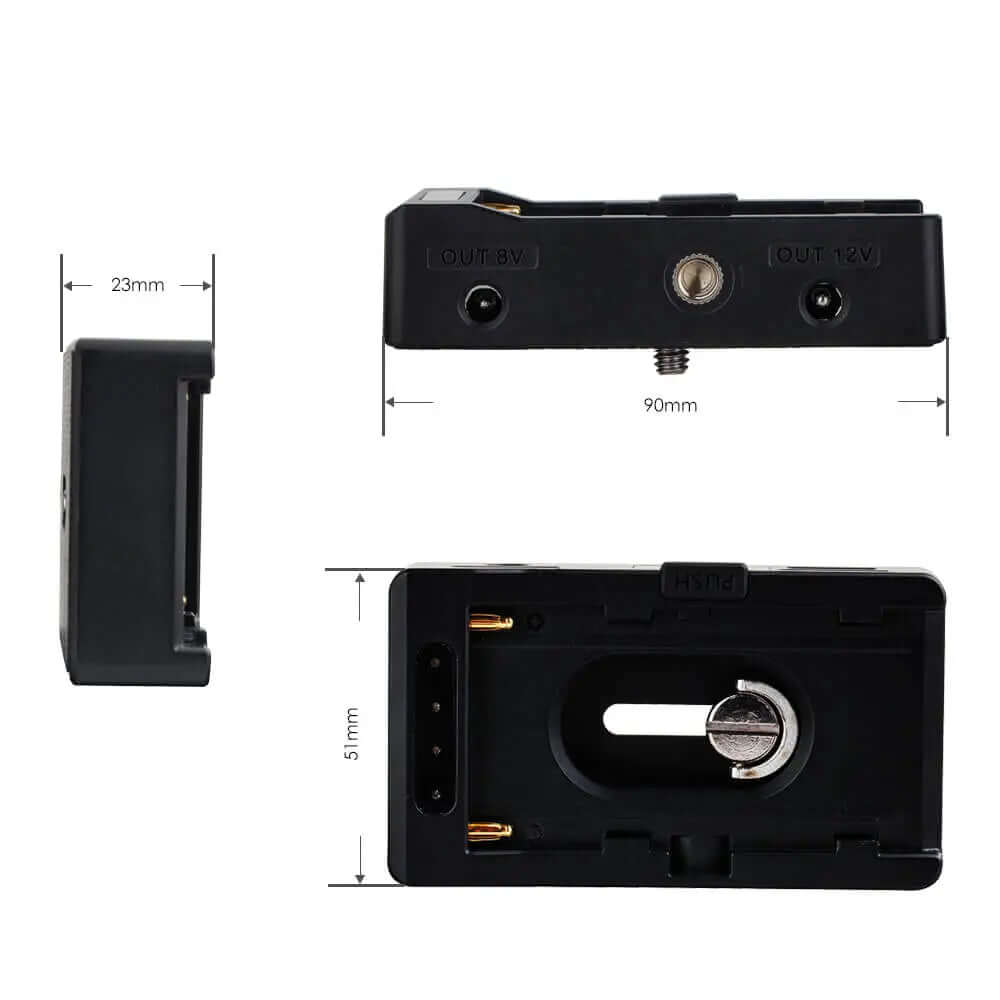

| Dimensions | 90 × 51 × 23 mm (3.5 × 2 × 0.9 in) |
| Weight | 70 g (2.5 oz) |
| Material | ABS + PC plastic |

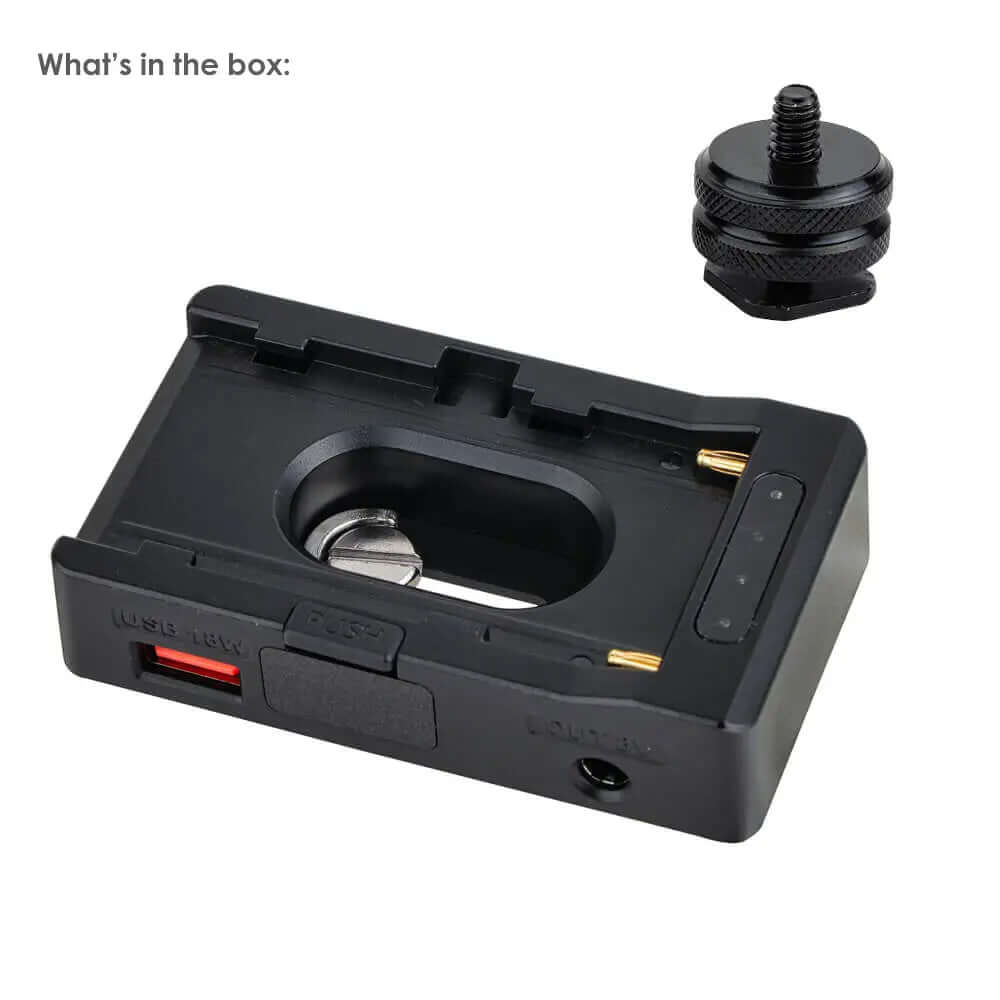

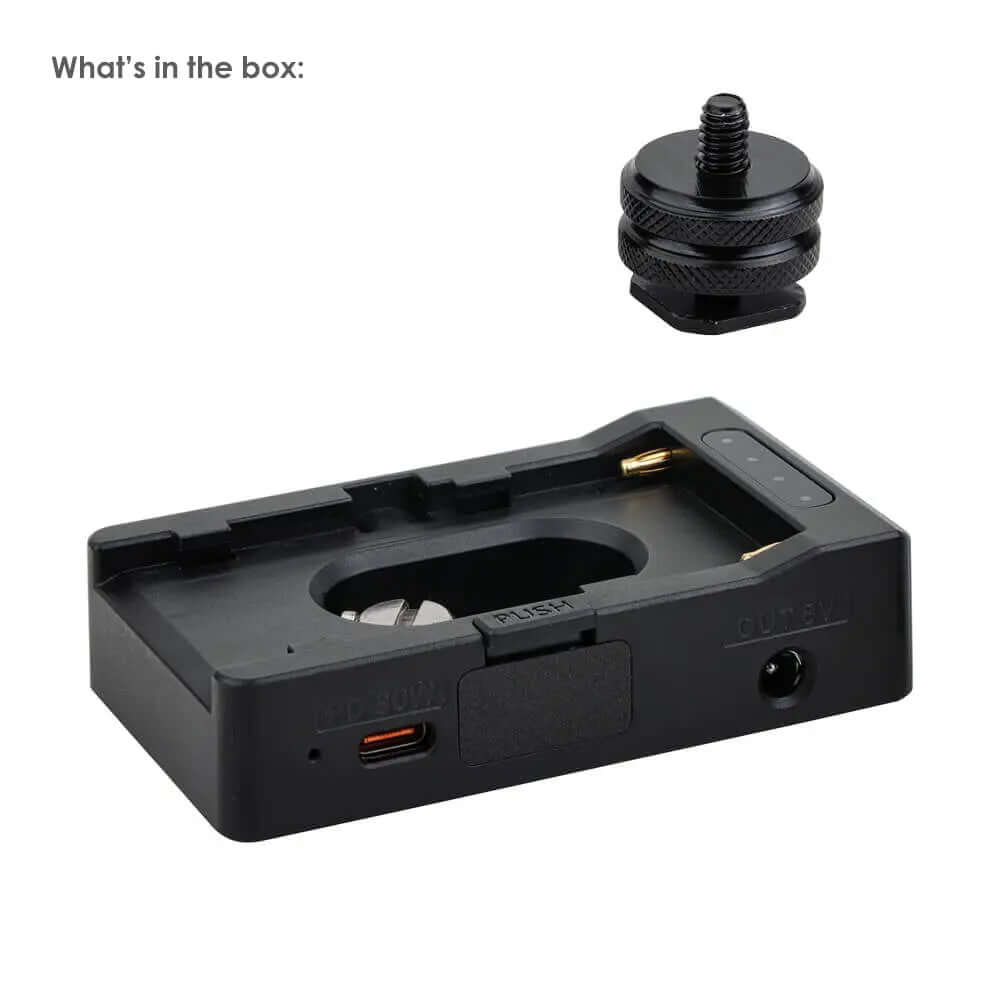

| In the Box | 1 × adapter plate + 1 × cold shoe adapter (battery not included) |
Key Advantages
- 3× DC5525 outputs — power camera, monitor, and light from a single NP-F battery
- USB-C PD 30W — charge phones, tablets, and wireless transmitters at fast-charging speeds

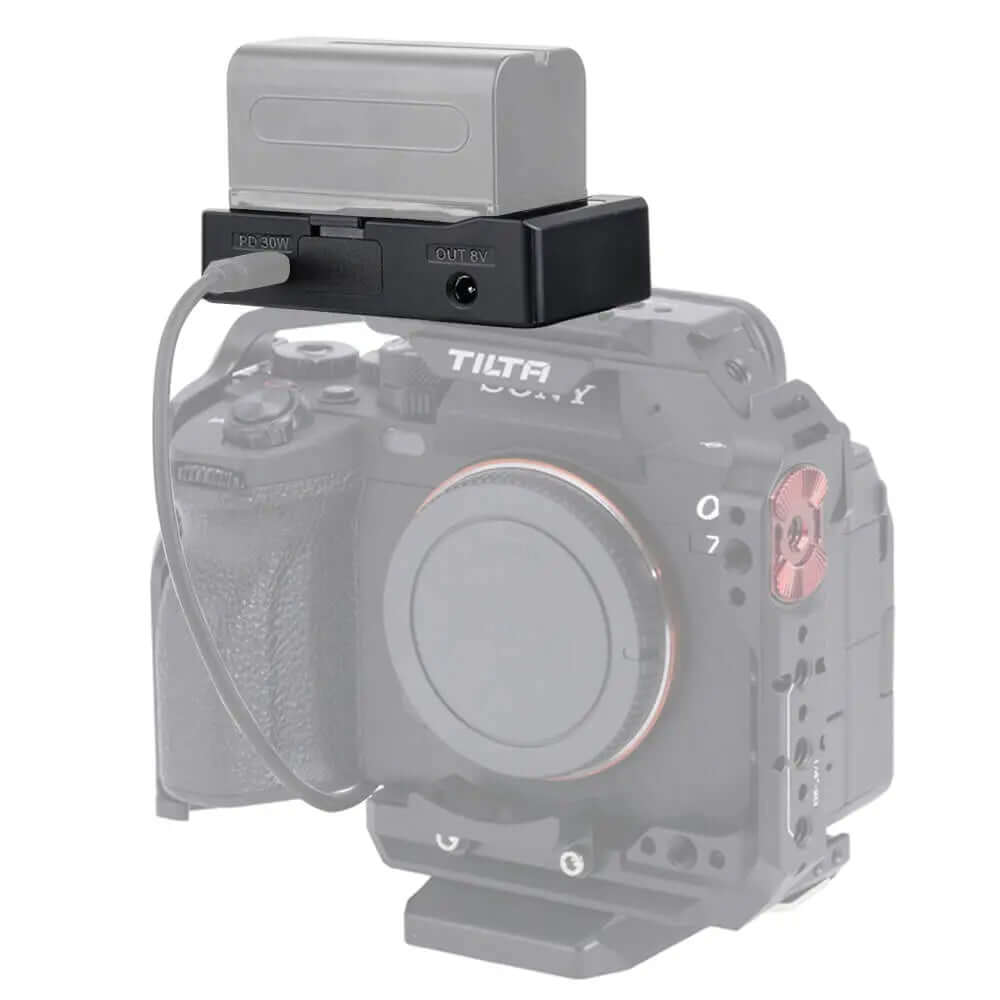

- Cold shoe adapter included — mount directly to camera cage, light stand, or tripod
- Universal NP-F fit — works with NP-F550 through NP-F990 (98Wh for longest runtime)

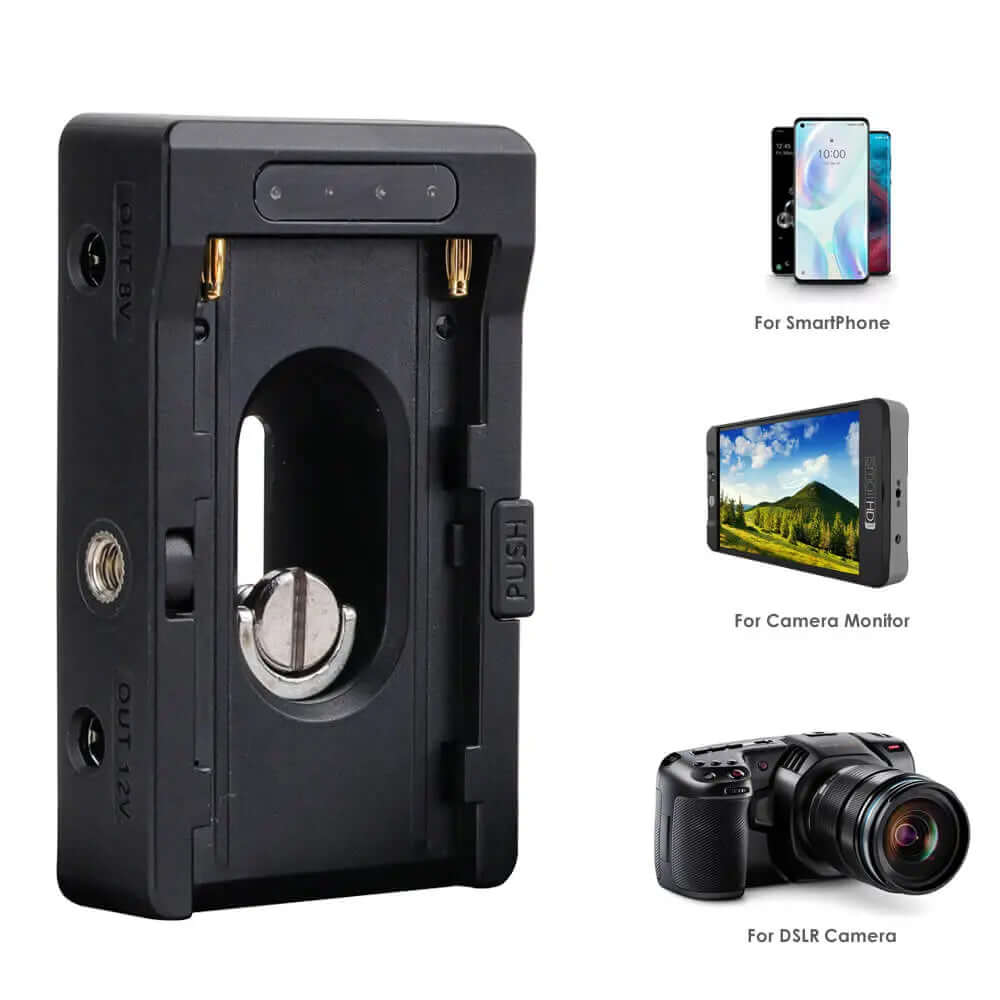

What You Can Power
- 12V DC5525: field monitors (SmallHD 7", Atomos Ninja V), LED lights (Aputure Amaran 60x)
- 8V DC5525: devices requiring 7.2-8.4V input (check your device specs)
- USB-C PD: wireless transmitters (Teradek Bolt, Hollyland Mars), phones, tablets, recording media
NP-F Battery Runtime Reference
| Battery | Capacity | Est. Runtime (monitor @ 12V) |
|---|---|---|
| NP-F550 | 35 Wh | ~1.5 hours |
| NP-F750 | 58 Wh | ~2.5 hours |
| NP-F970 | 92 Wh | ~4 hours |
| NP-F990 | 98 Wh | ~4.5 hours |
Runtime varies based on device power draw and number of outputs used simultaneously.
NF-FC (USB-C) vs. NF-FU (USB-A)
| Feature | NF-FC (USB-C) | NF-FU (USB-A) |
|---|---|---|
| USB Output | USB-C PD 3.0, max 30W | USB-A, max 18W |
| Fast Charging | Yes — PD negotiation | No — standard 18W |
| Best For | Wireless TX, phones, tablets | Budget setups, USB-A devices |
| DC Outputs | Same — 2× 8V + 1× 12V DC5525 | Same — 2× 8V + 1× 12V DC5525 |
| Price | $30.99 | $30.99 |
