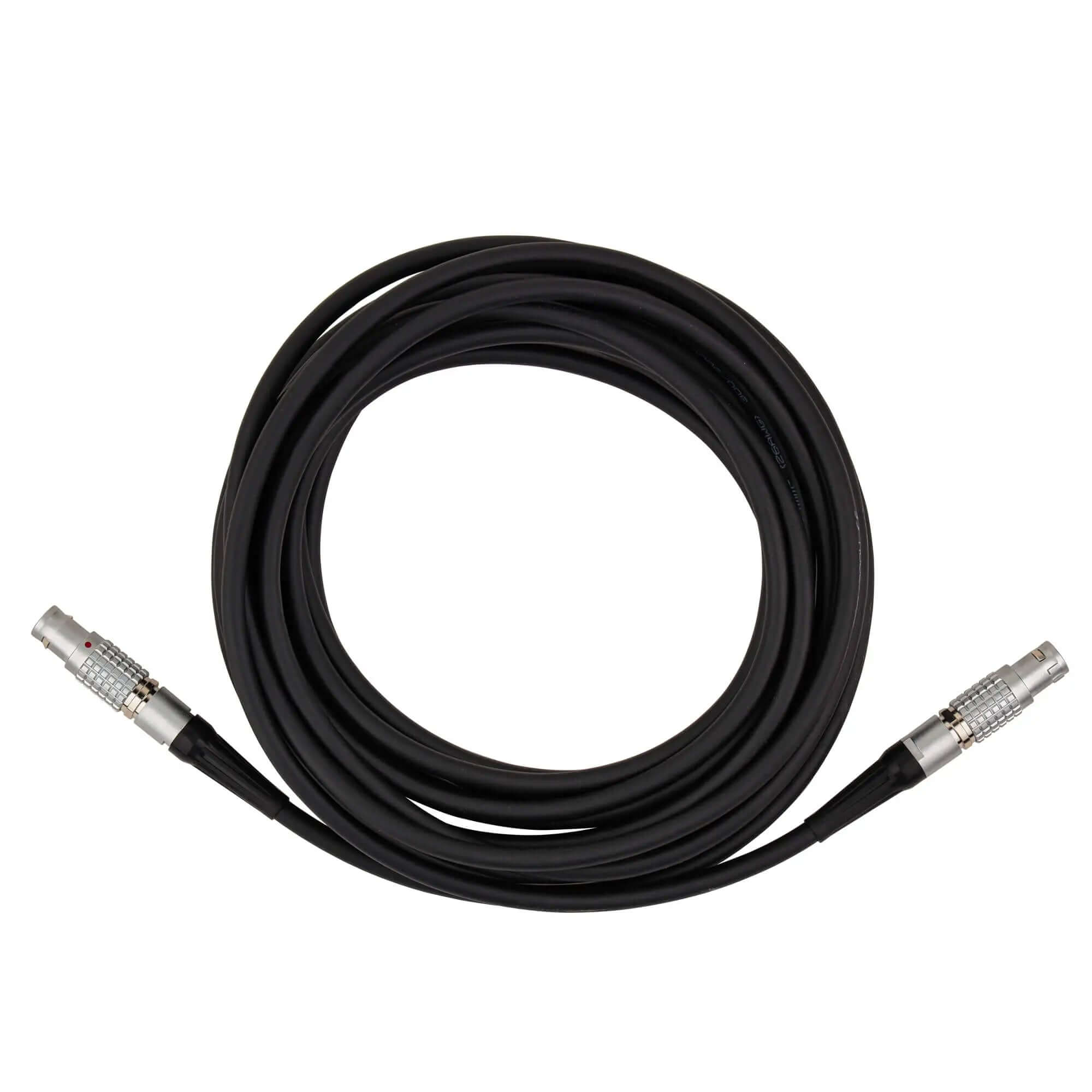

POWRIG DJI Ronin 2 to Master Wheels Control & Power Cable (RS2-MW)
The POWRIG RS2-MW is a dual-function 6-pin control and power cable that connects the DJI Ronin 2 professional cinema gimbal to the DJI Master Wheels remote controller. It carries both the gimbal control signal (pan, tilt, roll commands) and 14.4V DC power from the Ronin 2's output port to the Master Wheels unit — eliminating the need for a separate power cable and enabling fully tethered remote gimbal operation over a 5-meter (16.4 ft) run.
This cable is essential for Steadicam-to-gimbal hybrid workflows, remote head operation, vehicle-mounted gimbal control, and any production scenario where the gimbal operator is physically separated from the camera/gimbal system.
Key Features
- Dual Function: Control + Power — A single cable carries both the digital gimbal control signal (pan, tilt, roll axis commands from Master Wheels) and 14.4V DC power from the Ronin 2 gimbal's output port to the Master Wheels controller. This eliminates cable clutter compared to running two separate cables.

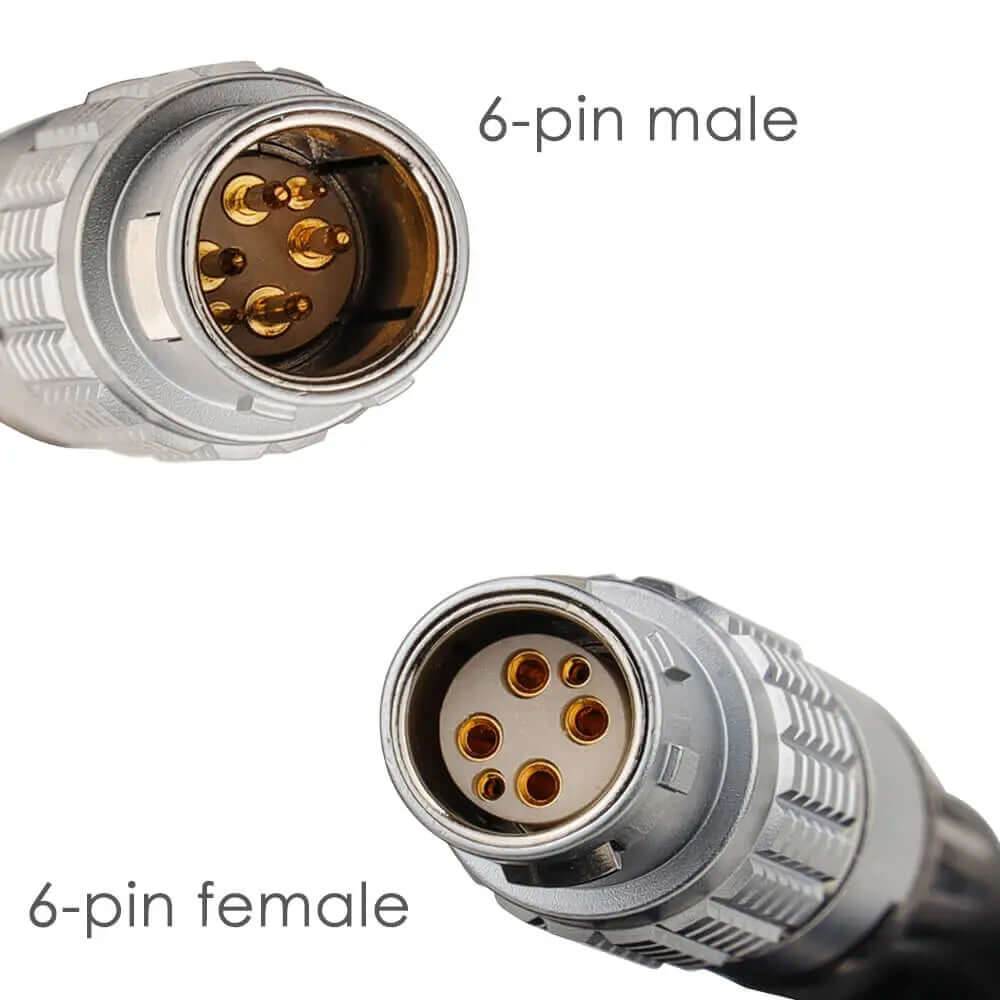

- 6-Pin Male to 6-Pin Female Connectors — The cable uses a 6-pin male connector on the Ronin 2 end and a 6-pin female connector on the Master Wheels end, matching the proprietary DJI multi-pin interface. Positive-lock connectors prevent accidental disconnection during operation.
- 14.4V Power Pass-Through — The cable draws 14.4V from the Ronin 2 gimbal's power output port (powered by the Ronin 2's TB50 battery system) and delivers it to the Master Wheels controller, so the Master Wheels does not require its own separate battery or power supply.
- 5-Meter (16.4 ft) Length — Provides sufficient cable run for most production scenarios: Steadicam operators working at distance from the gimbal, vehicle-mounted gimbals where the operator sits inside the vehicle, remote head setups where the operator is on the ground and the gimbal is on a crane or technocrane.
- 240 g Lightweight — The cable adds minimal weight to the gimbal-to-operator run. Important for overhead rigging and crane setups where excess cable weight affects balance and motor load.
- Shielded Multi-Conductor Construction — Internal shielding separates the control data signal from the power conductors, preventing electromagnetic crosstalk that could cause gimbal jitter, lag, or signal dropout during critical shots.
Specifications
| Attribute | Detail |
|---|---|
| Model | RS2-MW |
| Gimbal Connector | 6-pin male (DJI Ronin 2 output port) |
| Controller Connector | 6-pin female (DJI Master Wheels input) |
| Functions | Gimbal control signal + 14.4V DC power |
| Power Output | 14.4V from Ronin 2 battery system |
| Cable Length | 5 m / 16.4 ft |
| Weight | 240 g (8.5 oz) |
| Cable Type | Shielded multi-conductor |
What's in the Box
- 1 × POWRIG RS2-MW control & power cable (5 m / 16.4 ft)
Note: DJI Ronin 2 gimbal, DJI Master Wheels controller, and TB50 batteries are not included.
Compatible Equipment
| Equipment | Role | Compatible |
|---|---|---|
| DJI Ronin 2 | Gimbal (power + signal source) | Yes |
| DJI Master Wheels | Remote controller (receives power + signal) | Yes |
| DJI Ronin-S / RS2 / RS3 / RS4 | Smaller gimbals | No — different connector and protocol |
| DJI Force Pro | Handheld controller | No — uses wireless connection to Ronin 2 |
| Third-party gimbal controllers | Non-DJI controllers | No — proprietary DJI 6-pin interface |
Important: This cable is compatible with the DJI Ronin 2 professional cinema gimbal only. It is NOT compatible with the DJI RS2, RS3, RS4, Ronin-S, or Ronin-SC mirrorless gimbals, which use different connectors and control protocols.
Frequently Asked Questions
Is this cable compatible with the DJI RS2 or RS3?
No. This cable is designed exclusively for the DJI Ronin 2 professional cinema gimbal. The DJI RS2, RS3, RS3 Pro, RS4, Ronin-S, and Ronin-SC use different connectors and control protocols. They are not compatible with DJI Master Wheels.
Does the Master Wheels need its own battery or power supply?
No. When connected via this cable, the Master Wheels receives 14.4V power from the Ronin 2's TB50 battery system through the cable. No separate battery or AC power supply is needed for the Master Wheels. However, this means the Ronin 2's battery runtime is slightly reduced because it is also powering the Master Wheels controller.
Can I use a longer cable than 5 meters?
The 5m (16.4 ft) length is the standard configuration. DJI recommends not exceeding 5m for reliable control signal transmission without an active signal booster. If you need a longer run, consider using a wireless video system for monitoring and the DJI Force Pro for wireless gimbal control instead of extending the cable.
What happens if the cable disconnects during a shot?
If the cable disconnects, the Master Wheels loses control of the gimbal and the Ronin 2 will hold its last position (or return to a default behavior depending on firmware settings). The 6-pin connectors are positive-lock and designed to resist accidental disconnection, but always use cable management (velcro ties, cable wraps) to secure the cable along the run and prevent snagging.
Does this cable carry video signal?
No. This cable carries only gimbal control signals and 14.4V power. It does not transmit video. For monitoring the camera feed remotely, you need a separate wireless video system (such as Teradek Bolt, Hollyland Mars, or DJI Transmission) or a wired SDI cable to a monitor at the operator's position.
Will this cable work with third-party gimbal controllers?
No. The 6-pin connector and control protocol are proprietary to DJI. This cable only works between the DJI Ronin 2 and the DJI Master Wheels controller. Third-party controllers (Preston, Arri WCU-4, Tilta Nucleus) use different interfaces and are not compatible.
How do I protect the cable on outdoor shoots?
Use cable management wraps or spiral cable protectors to shield the cable from abrasion on vehicle edges, crane joints, and ground surfaces. Avoid running the cable through door jams or under heavy equipment. For wet environments, use a cable rain cover or wrap the connectors in waterproof tape to prevent moisture ingress into the 6-pin connections.
