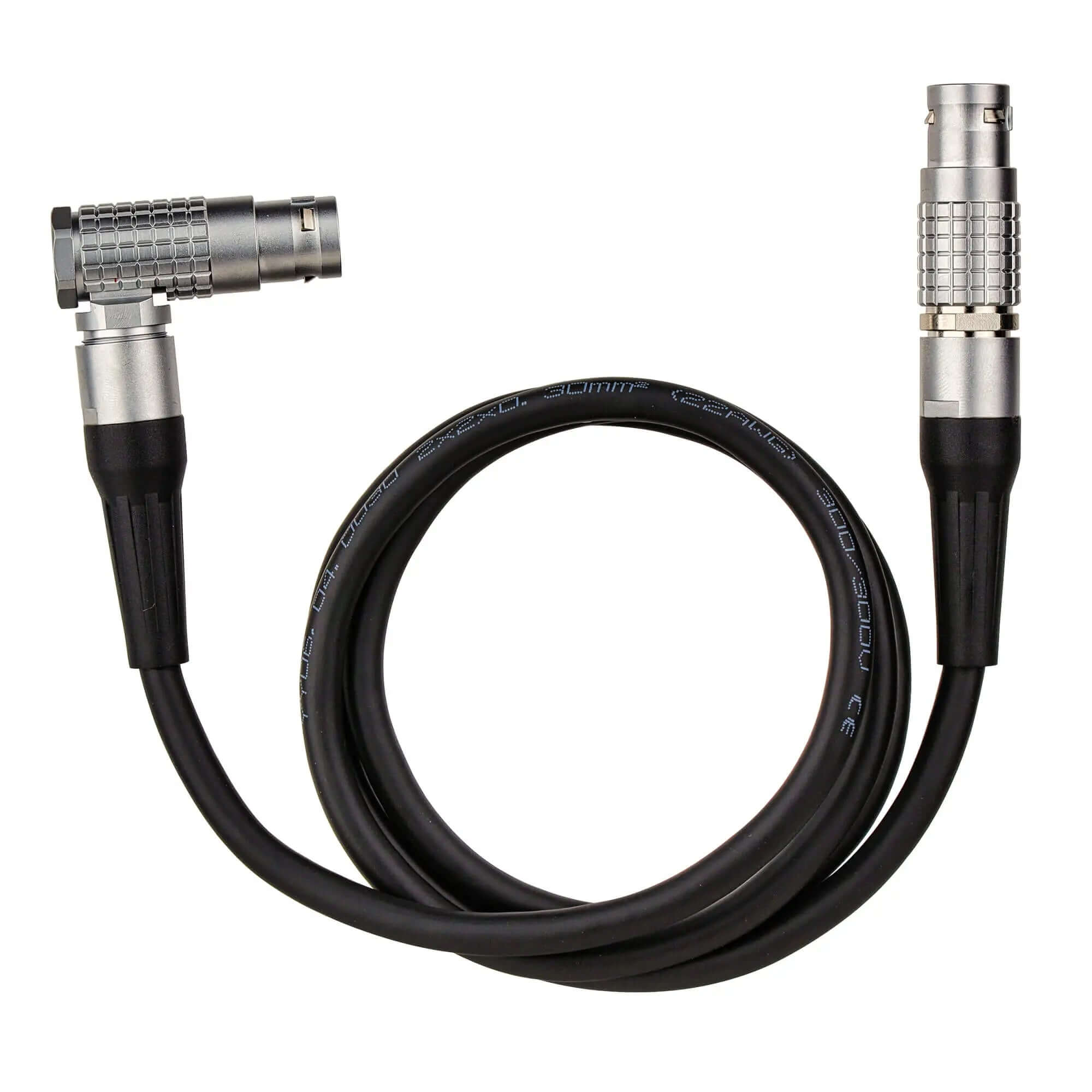

POWRIG DJI TB50 to RED RANGER / V-RAPTOR XL Power Cable
The POWRIG TB50-RED V is a dedicated power cable that connects a DJI TB50 battery module's "POWER OUT" port to the DC power input of RED RANGER (Gemini, Helium, Monstro 8K) and RED V-RAPTOR XL (S35 and VV) cinema cameras. It delivers the TB50's native 22.2V output through a LEMO 2-pin connector, providing reliable field power for extended shoots, Steadicam, gimbal, and remote head setups where traditional V-Mount or Gold Mount battery plates are impractical.
At 100 cm (39"), the cable provides sufficient reach between a belt-worn or rig-mounted TB50 module and the camera body while remaining lightweight and manageable on set.
Key Features
- DJI TB50 Battery Module Compatible — Connects to the TB50 battery module's "POWER OUT" (P-Tap / D-Tap style) output port. The DJI TB50 module is widely used in the cinema industry as a compact, hot-swappable power source for gimbals (DJI Ronin 2), drones (Inspire 2), and camera rigs. Each TB50 battery delivers 4280 mAh / 94.5 Wh at 22.2V nominal.
- LEMO 2-Pin Camera Connector — The camera end features a LEMO 2-pin (RED-standard) DC power plug that mates with the RED RANGER and V-RAPTOR XL power input ports. The LEMO connector provides a positive-lock, vibration-proof connection that will not disconnect during camera movement or vehicle mounting.
- 22.2V Native Output — The cable passes the TB50's native 22.2V directly to the camera with no voltage conversion. RED RANGER and V-RAPTOR XL cameras accept a wide DC input range (approximately 11.5V–17V regulated via internal power management, with higher input tolerance for battery sources). Verify your specific camera's input voltage range in the RED manual before use.
- 100 cm (39") Optimal Length — Long enough to route from a belt-mounted, Steadicam vest-mounted, or rig-adjacent TB50 module to the camera body. Short enough to avoid excess cable management on compact setups.
- Heavy-Gauge Conductors — Sized to carry the current draw of RED cinema cameras (typically 3–8A depending on sensor, resolution, and accessories) without voltage drop or cable heating over the 100 cm length.
Specifications
| Attribute | Detail |
|---|---|
| Model | TB50-RED V |
| Source Connector | DJI TB50 battery module "POWER OUT" port |
| Camera Connector | LEMO 2-pin (RED standard DC power) |
| Voltage | 22.2V nominal (TB50 native output) |
| Cable Length | 100 cm / 39 inches |
| Wire Gauge | Heavy-gauge (rated for RED camera current draw) |
| Jacket | Flexible, abrasion-resistant |
What's in the Box
- 1 × POWRIG TB50-RED V power cable (100 cm / 39")
Note: DJI TB50 battery module and RED camera are not included. Ensure you have a DJI TB50 battery module with a "POWER OUT" port before ordering.
