POWRIG DJI Ronin 2 to Sony VENICE 2 Power Cable (RS2-V2)

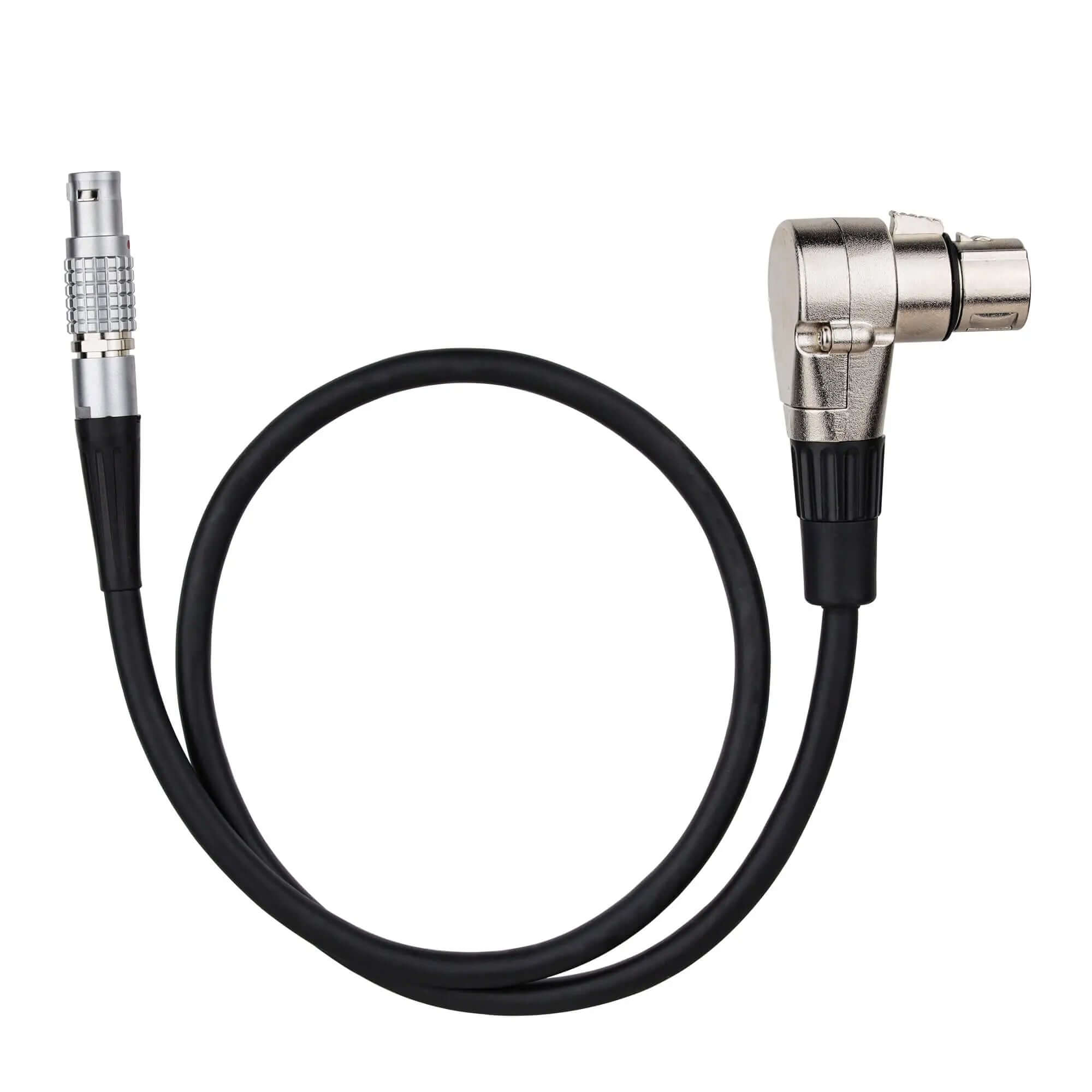

The POWRIG RS2-V2 is a dedicated power cable that connects the DJI Ronin 2 professional cinema gimbal's 14.4V accessory power output (6-pin LEMO) to the Sony VENICE 2 (CineAlta V2), original Sony VENICE, and Sony F55 cinema cameras via a right-angle 4-pin XLR DC power input.
This cable enables the Ronin 2's TB50 battery system to power the Sony VENICE 2 camera body directly, eliminating the need for a separate on-camera battery plate and reducing total rig weight on gimbal, Steadicam, car mount, and remote head setups.
At 50 cm (19.7") and 100 g, the cable provides sufficient reach for standard gimbal-to-camera mounting configurations while remaining lightweight and manageable. Custom cable lengths are available — contact us at info@powrig.com for requests.
Key Features

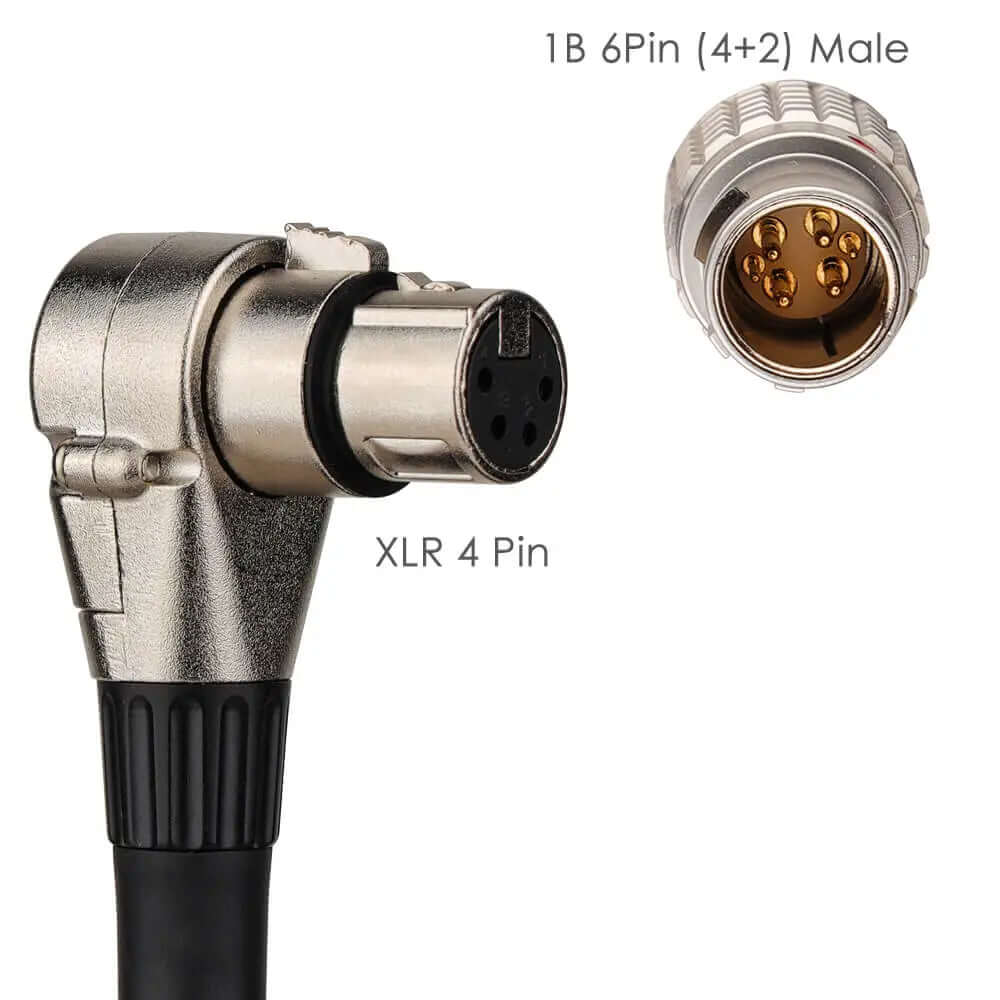

- DJI Ronin 2 Power Source (6-Pin LEMO Male) — Connects to the Ronin 2 gimbal's accessory power output port, which draws from the Ronin 2's dual TB50 battery system (14.4V nominal). The 6-pin LEMO male connector uses a 4+2 pin configuration matching the DJI Ronin 2 power output interface.
- Sony VENICE 2 Camera Connector (Right-Angle 4-Pin XLR Female) — The 4-pin XLR female connector matches the Sony VENICE 2, VENICE, and F55 camera DC power input standard. The right-angle design routes the cable flush against the camera body, preventing protrusion inside camera cages and reducing strain on the XLR port during movement and vehicle mounting.
- 14.4V Compatible with Sony VENICE 2 DC Input — The Sony VENICE 2 accepts DC input via the 4-pin XLR port. The Ronin 2's 14.4V TB50 battery output falls within the camera's operating voltage range. Always verify your specific VENICE 2 firmware and power settings in the Sony manual before connecting external power.
- 50 cm (19.7") Versatile Length — Provides sufficient cable run for most gimbal-to-camera mounting configurations, including cage-mounted setups, top-plate mounting, and side-mounted configurations. Longer than the 30 cm cables used for tight cage routing, but short enough to avoid excess cable management.
- 100 g Lightweight — Adds minimal weight to the gimbal-to-camera power run. Important for Steadicam and gimbal operators where cable weight affects balance calibration.
- Heavy-Gauge Shielded Conductors — Sized to handle the Sony VENICE 2's power draw (approximately 50–70W depending on sensor mode, Rialto extension, accessories, and recording format) without voltage drop or cable heating. Shielding prevents EMI interference from nearby wireless video transmitters and radio microphones.
- Custom Lengths Available — Contact POWRIG at info@powrig.com to order this cable in custom lengths for specific rig configurations (crane, remote head, vehicle mount with extended cable runs).
Specifications
| Attribute | Detail |
|---|---|
| Model | RS2-V2 |
| Gimbal Connector | 6-pin LEMO male (4+2 pin, DJI Ronin 2 accessory power output) |
| Camera Connector | 4-pin XLR female, right-angle (Sony VENICE / F55 DC input) |
| Voltage | 14.4V nominal (from Ronin 2 TB50 battery system) |
| Cable Length | 50 cm / 19.7 inches (custom lengths available) |
| Weight | 100 g (3.5 oz) |
| Cable Type | Shielded, heavy-gauge conductors |
| Compatible Gimbal | DJI Ronin 2 only |
| Compatible Cameras | Sony VENICE 2, Sony VENICE, Sony F55 / F5 |
What's in the Box
- 1 × POWRIG RS2-V2 power cable (50 cm / 19.7")
Note: DJI Ronin 2 gimbal, Sony VENICE 2 camera, and TB50 batteries are not included.
Compatible Equipment
Sony Cinema Cameras
| Sony Camera | Also Known As | 4-Pin XLR DC Input | Compatible |
|---|---|---|---|
| Sony VENICE 2 | CineAlta V2 | Yes | Yes |
| Sony VENICE | CineAlta V | Yes | Yes |
| Sony F55 | PMW-F55 | Yes | Yes |
| Sony F5 | PMW-F5 | Yes | Yes |
| Sony VENICE 2 (Rialto Extension) | VENICE 2 with sensor block separated | Yes (via Rialto cable) | Check — cable may need to reach extension system |
| Sony FX9 / FX6 / FX3 | — | No (use DC barrel or other connector) | No — different power input |
DJI Gimbals
| DJI Gimbal | Compatible | Notes |
|---|---|---|
| DJI Ronin 2 | Yes | 6-pin accessory power output, 14.4V from TB50 |
| DJI RS2 / RS3 / RS3 Pro / RS4 | No | Different connector and power output configuration |
| DJI Ronin-S / Ronin-SC | No | No 6-pin accessory power output |
Production Scenarios for Ronin 2 Powered Sony VENICE 2
- Gimbal-mounted VENICE 2 (Steadicam replacement) — Mount the Sony VENICE 2 on the Ronin 2 and power it from the gimbal's TB50 batteries via this cable. The VENICE 2 body (~2.2 kg) is within the Ronin 2's 7 kg payload capacity, making this a viable Steadicam alternative for narrative and commercial productions.
- Car mount / Russian Arm / pursuit vehicle — The Ronin 2 is mounted on a vehicle exterior with the VENICE 2 on the gimbal. The gimbal's TB50 batteries power both the gimbal motors and the camera, simplifying the power architecture to a single battery system and reducing cable clutter.
- Remote head / technocrane — The Ronin 2 and VENICE 2 are mounted on a remote head at height. Powering the camera from the gimbal reduces the number of cables running down the crane and eliminates a separate camera battery that adds weight to the remote head motors.
- VENICE 2 with Rialto Extension — When using the Rialto camera extension system (sensor block separated from processing/recording body), this cable can power the main camera body from a Ronin 2 mounted nearby. The 50 cm length may need to be extended for certain Rialto configurations — contact us for custom lengths.
- Multi-camera studio / live production — In live production setups where multiple VENICE 2 cameras are mounted on Ronin 2 gimbals (e.g., concert coverage, sports), this cable standardizes the power architecture across all camera positions.
Sony VENICE 2 Power Draw Reference
| Camera | Typical Power Draw | Est. Runtime (dual TB50, 189 Wh total) |
|---|---|---|
| Sony VENICE 2 (body only) | ~50–60W | ~2.5–3 hours (camera only, gimbal off) |
| Sony VENICE 2 + Rialto Extension | ~55–70W | ~2–2.5 hours (camera only, gimbal off) |
| Sony VENICE (original) | ~45–55W | ~3–3.5 hours (camera only, gimbal off) |
| Sony F55 | ~35–45W | ~3.5–4.5 hours (camera only, gimbal off) |
Important: When the Ronin 2 gimbal motors are also powered from the same TB50 batteries, total combined runtime (gimbal + camera) is approximately 1–1.5 hours depending on payload, movement intensity, and accessories. Always carry spare TB50 batteries and use the Ronin 2's hot-swap capability (dual-bay configuration) for uninterrupted operation.
Frequently Asked Questions
Is 14.4V from the Ronin 2 safe for the Sony VENICE 2?
The Sony VENICE 2 accepts DC input via its 4-pin XLR power connector. The camera's internal power management regulates the input voltage. Always verify the acceptable input voltage range in the Sony VENICE 2 Operations Manual before connecting any external power source. The Ronin 2's 14.4V TB50 output is commonly used to power cinema cameras in gimbal setups, but confirming compatibility with your specific camera firmware version is essential.
Will this cable work with the DJI RS2 or RS3?
No. This cable is designed for the DJI Ronin 2 professional cinema gimbal, which has a 6-pin LEMO accessory power output port. The DJI RS2, RS3, RS3 Pro, and RS4 use different connectors and do not have the same 6-pin power output interface.
Will this cable work with the Sony FX9, FX6, or FX3?
No. The Sony FX9, FX6, and FX3 use different power input connectors (DC barrel, BP-U battery slot, USB-C PD) — not a 4-pin XLR. This cable is compatible only with Sony cinema cameras that have a 4-pin XLR DC power input: the VENICE 2, VENICE, F55, and F5.
What is the difference between 4-pin XLR and the XLR audio connectors I see on mixers?
The 4-pin XLR used for DC power on cinema cameras is a different connector from the 3-pin and 5-pin XLR connectors used for audio. The 4-pin XLR (also called "XLR4" or "power XLR") carries only DC power — it does not carry audio signals. Pin 1 and 2 are typically ground, and Pin 3 and 4 are DC voltage positive. Do not confuse this connector with audio XLR ports.
Can I order this cable in a custom length?
Yes. POWRIG offers custom cable lengths for specific rig configurations. Common custom requests include 30 cm (for tight cage setups), 100 cm (for crane and remote head cable runs), and 200 cm (for vehicle-mounted gimbal to in-car operator setups). Contact us at info@powrig.com with your desired length and we will provide a quote.
Can I power both the gimbal and the VENICE 2 from the same TB50 batteries?
Yes. The Ronin 2's accessory power output draws from the same TB50 battery system that powers the gimbal motors. However, total runtime is reduced because both the gimbal and camera draw from the same battery capacity. For long shoots, carry spare TB50 batteries and use the Ronin 2's hot-swap capability (dual-bay configuration) to change batteries without powering down the camera.
Does the cable work with the Sony VENICE 2 Rialto Extension system?
The cable connects to the main VENICE 2 body's 4-pin XLR input, which powers the camera regardless of whether the Rialto extension is attached. However, the Rialto system may change the physical distance between the gimbal mounting point and the camera's power port. If 50 cm is not sufficient for your Rialto configuration, contact us for a custom-length cable.
